General Details:
-
Overall Dimensions: 2100 × 950 × 1500 mm
-
Carton Packing Size: 2070 × 1020 × 270 mm
-
Gross Weight: 50 KGS
-
40HQ Loadability: 108 sets
Construction Specifications:
-
Dryer lid made of transparent fiberglass sheet, thickness 3–4 mm
-
Lid support: 25 × 25 mm angle iron
-
Lid dimensions: 2000 × 950 mm
-
Frame made of 25 × 25 mm angle iron
-
Walls: galvanized sheet
-
Wall height: up to 300 mm
-
Frame dimensions: 2000 mm (L) × 950 mm (W)
-
Frame cover: galvanized sheet with 32 ventilation holes
-
Solar panel: 18V output, runs fan without battery
-

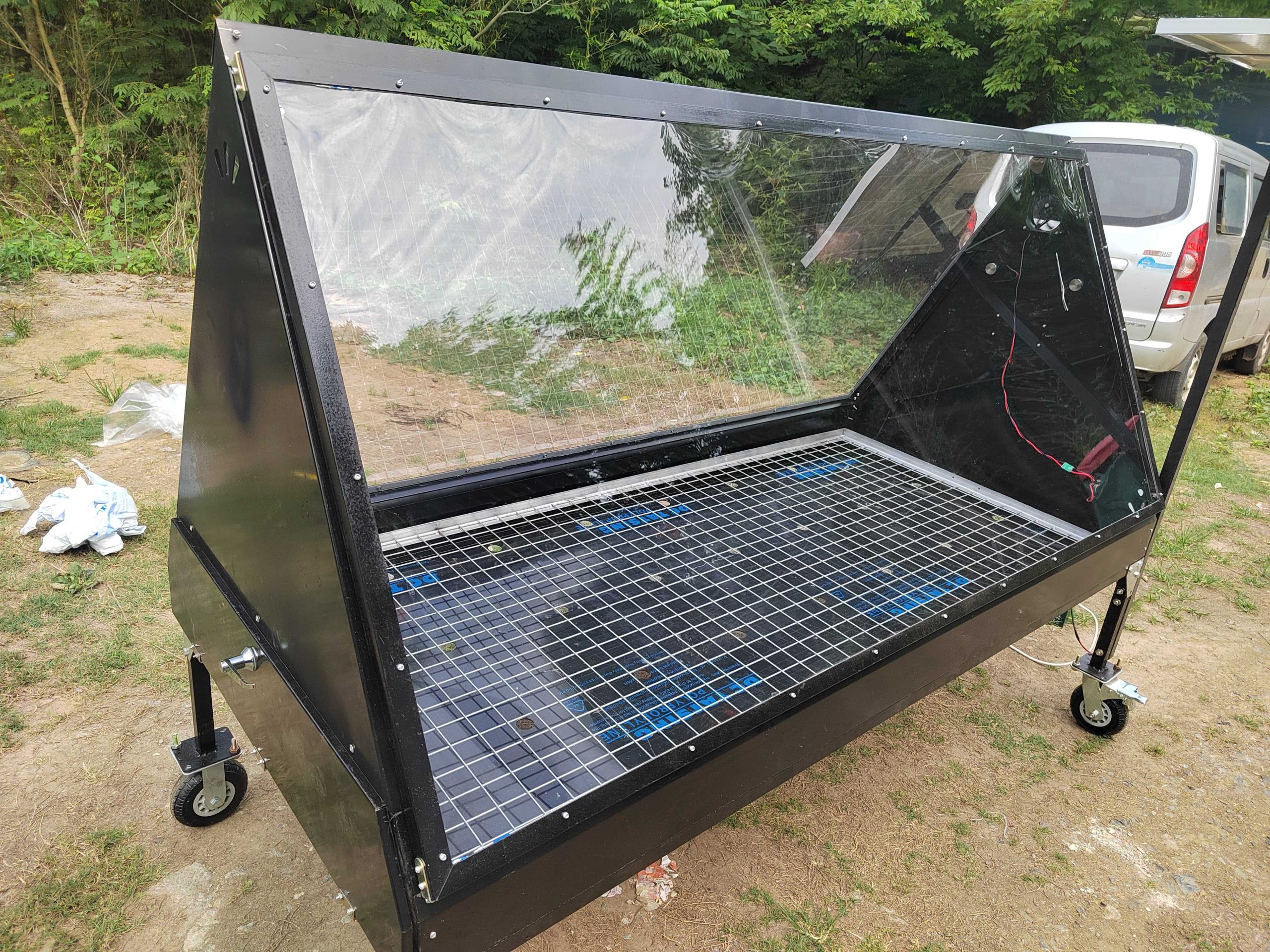

Tray: galvanized, mesh size 50 × 50 mm
-
Tray size: 1900 × 900 × 70 mm, with rubber wheels
-
Legs: 25 × 25 mm iron angle, 500 mm long
-
Wheels: rubber wheels with locking devices – Ø100 mm × 30 mm
-
Side wall fan with insect-proof gauze; airflow: 100/sec

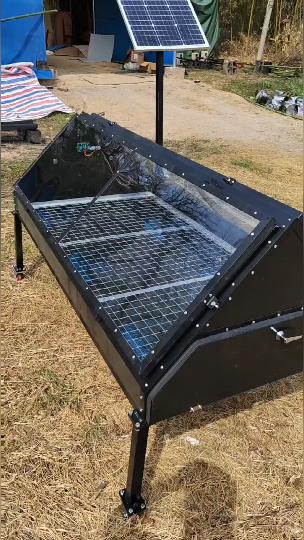

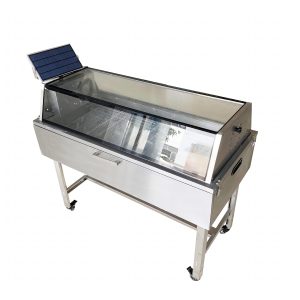

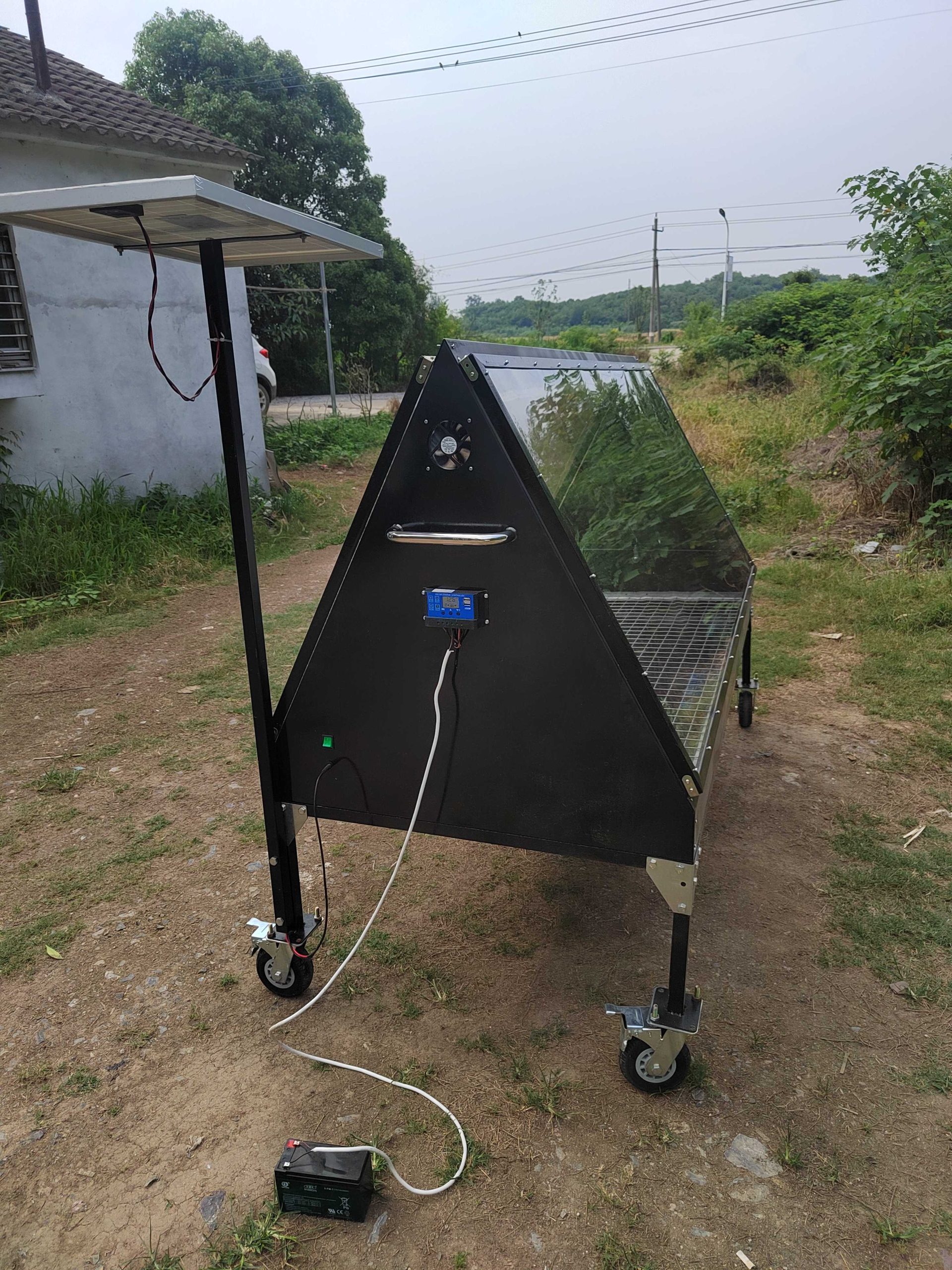

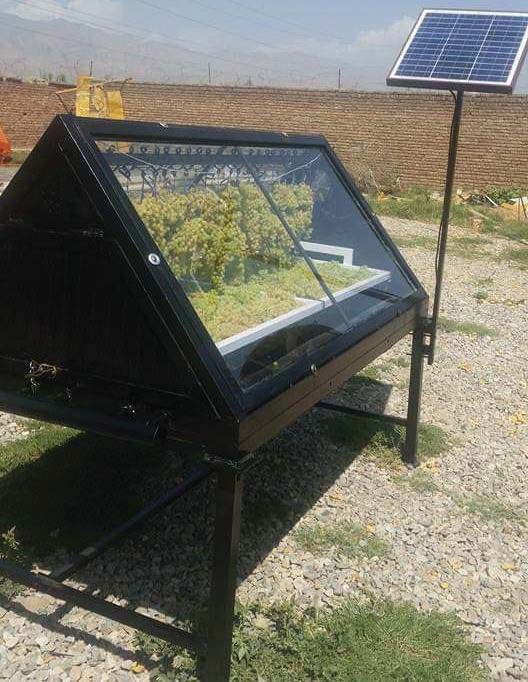

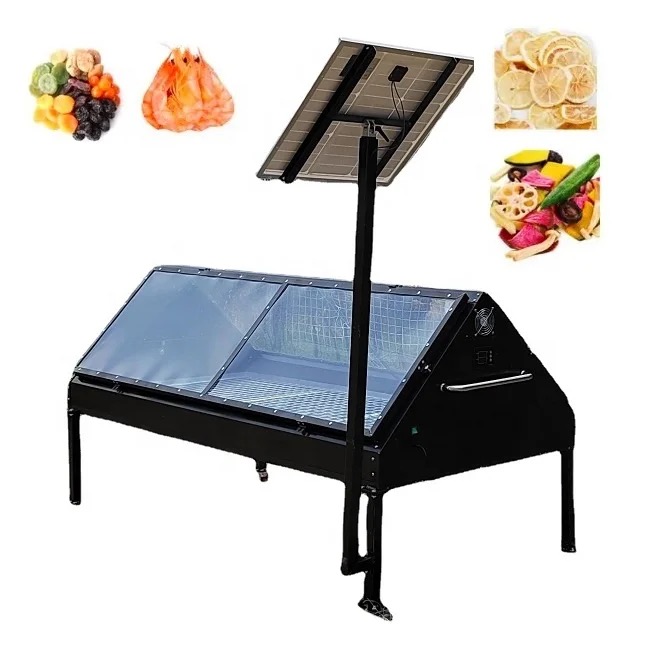

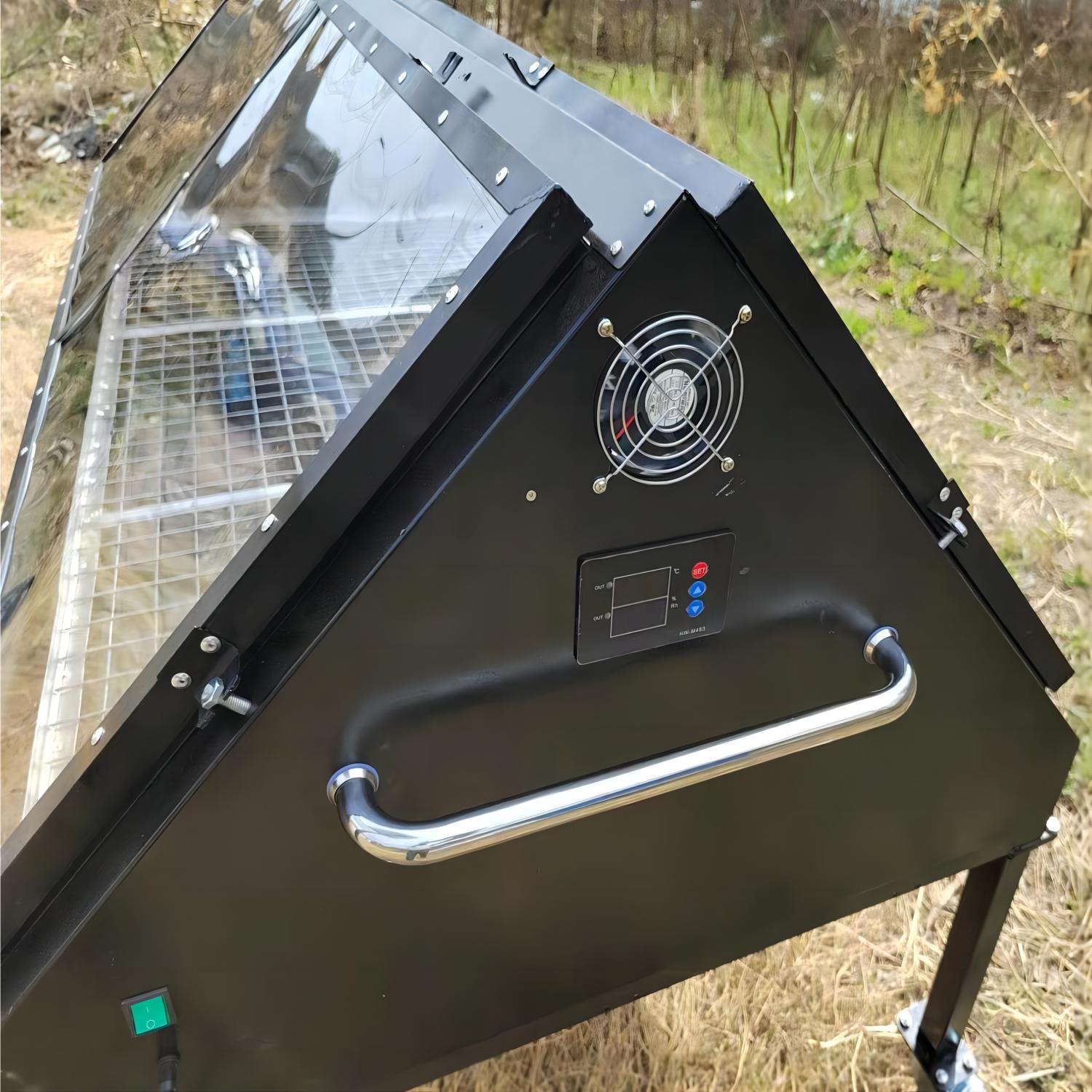

Technical Specifications – TIANJIN COMWEL Model A2 Micro Solar Dryer
| S/N | Item | Specification |
|---|---|---|
| 1 | Type of Machine | Micro Solar Dryer |
| 2 | Dry Capacity | 20–25 kg |
| 3 | Length of Dryer Wall | 1900 mm |
| 4 | Width of Dryer Frame | 900 mm |
| 5 | Height | 1700 mm |
| 6 | Net Weight | 60 kg |
| 7 | Transparent Lid | 1.5 mm hard fiberglass |
| 8 | Lid Support | 25 × 25 mm square pipe |
| 9 | Frame Cover | Galvanized with 32 holes for ventilation |

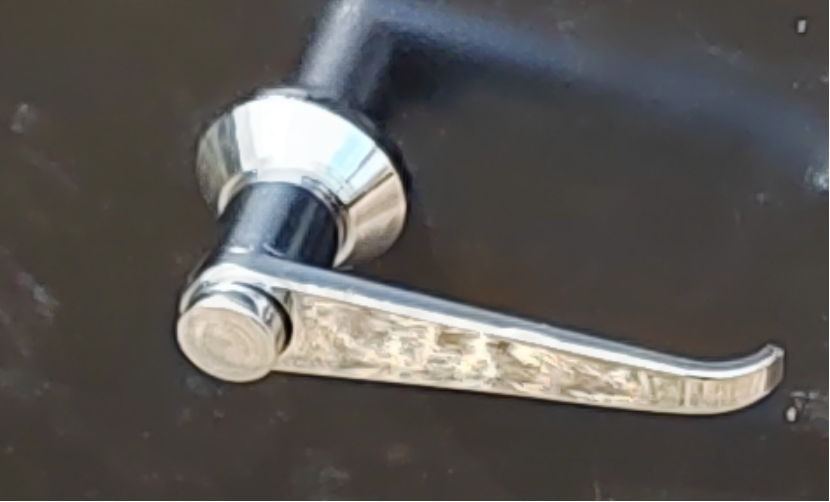

| 10 | Handle | Stainless steel |
| 11 | Cable | 0.2 mm² |
| 12 | On/Off Switch | 12V |
| 13 | Solar PV Panel | 36V / 50W (powers fan) |
| 14 | Food Tray | 1 pc – 1850 × 850 × 60 mm, galvanized w/ wheels |
| 15 | Tray Material | Galvanized steel |
| 16 | Rubber Wheels | 4 units, Ø8 × 6 cm |
| 17 | Battery for Charge Controller | 1 unit, 6.5Ah, 12V |
| 18 | Color | Black, furnace-baked paint |
| 19 | Smart Charge Controller | 1 unit, digital LCD, auto memory, all parameters adjustable |
| 20 | Automatic Switch | 12V |
| 21 | Dehumidifier | 12 × 12 cm, 12V, 5W, 1500 RPM |
| 22 | Installation/Training | E-book / Online / Video guide |
Detailed Technical Breakdown
1.0 General Construction
-
Lid: Transparent fiberglass (3–4 mm thick)
-
Lid Support: 25–30 mm angle iron
-
Lid Dimensions: 1900–2000 mm (L) × 900–950 mm (W)
-
Frame: 25 × 25 mm angle iron
-
Walls: Galvanized sheet
-
Wall Height: 250–300 mm
-
Dryer Size: 1900–2000 mm (L) × 900–950 mm (W)
-
Ventilation: 32-hole galvanized cover
-
Fan: Side-mounted with gauze, 100/sec circulation
-
Solar Panel: 36V, powers fan without battery
-
Tray Cells: 50 × 50 mm mesh
-
Tray Size: 1850–1900 mm (L) × 850–900 mm (W) × 60–70 mm (H), with wheels
-
Legs: 25–30 mm angle iron, 500–550 mm long
-
Wheels: Ø8 × 6 cm, lockable

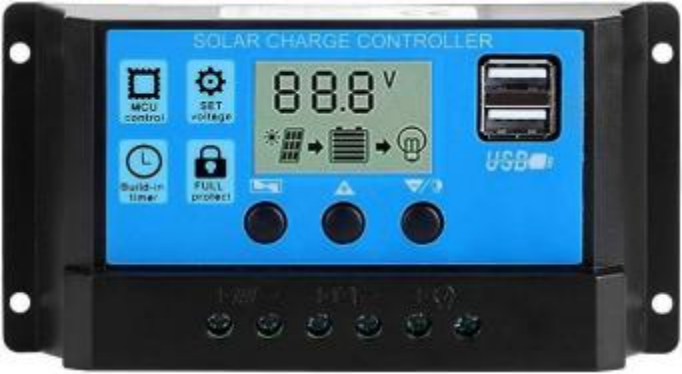

2.0 Smart Solar Charge Controller
-
Built-in microcontroller
-
One-key setting
-
Digital display
-
Automatic memory
-
PWM 4-level charging
-
Short circuit, overload, reverse protection
-
Rated voltage: 12V/24V auto
-
Compact, easy to install
3.0 Battery for Solar Charge Controller
-
AGM technology
-
Voltage: 12V
-
Capacity: 6.5Ah
-
Weight: 1–1.7 kg
-
Terminal layout: + / –
-
Vibration-resistant, long shelf life
4.0 Manuals
-
Operator’s guide (printed/CD/online) included
-
Cost included in unit DPU price
